Enhanced Flight Stability
Wheeled or Belly Landing Facility
Designed for Long Edurance Missions
Advanced Autopilot

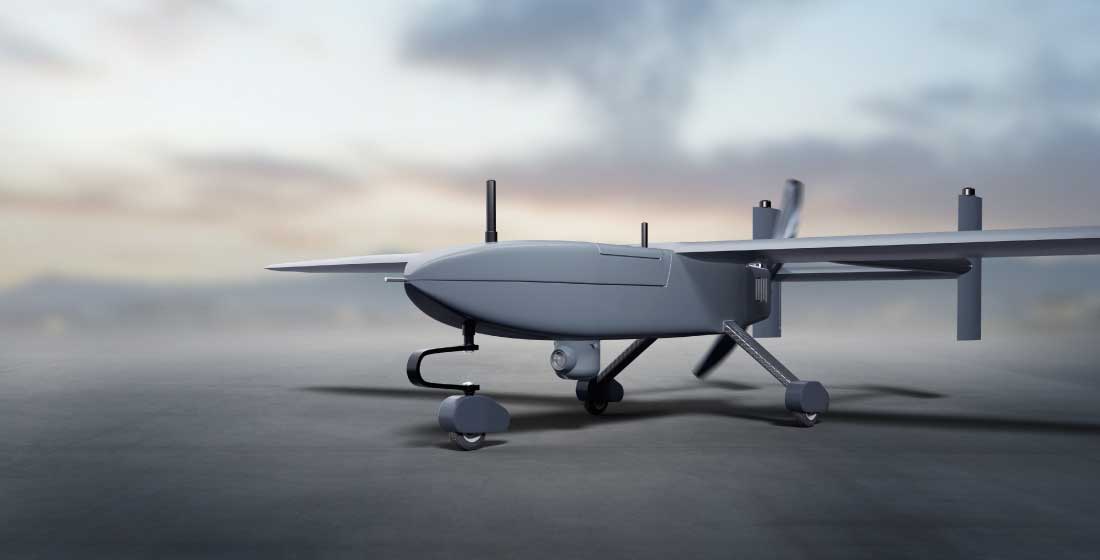

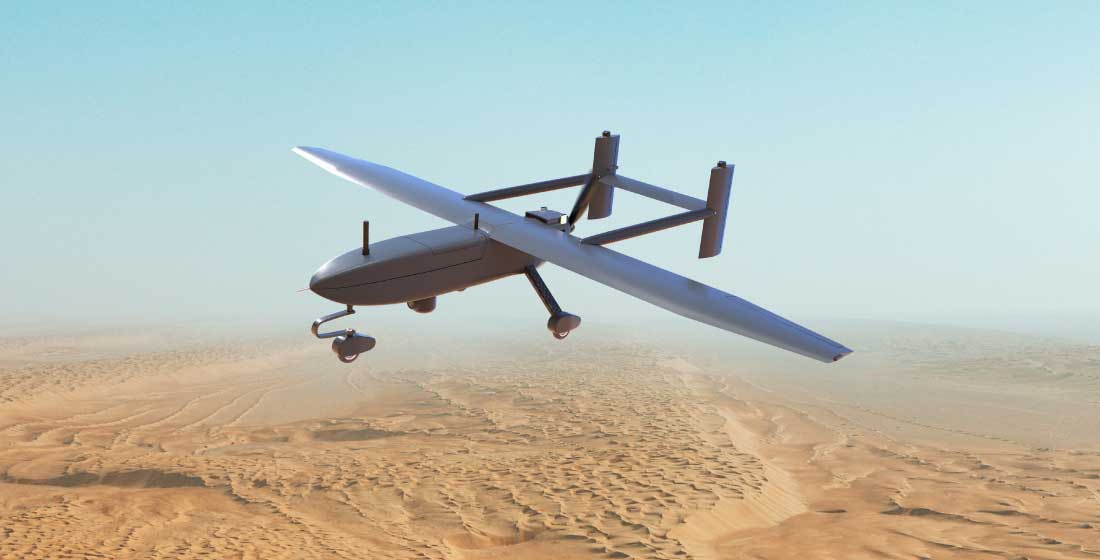

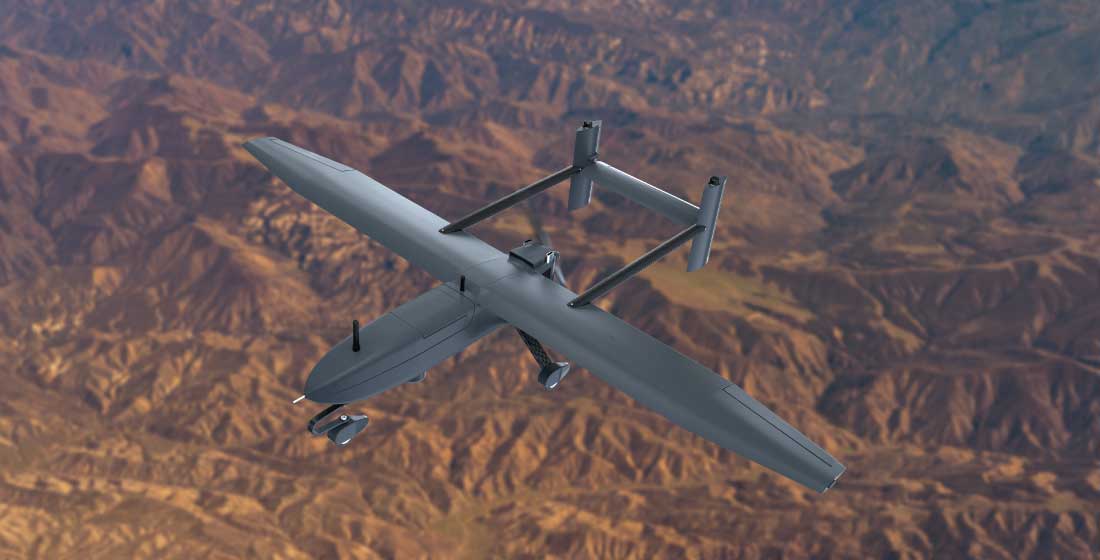

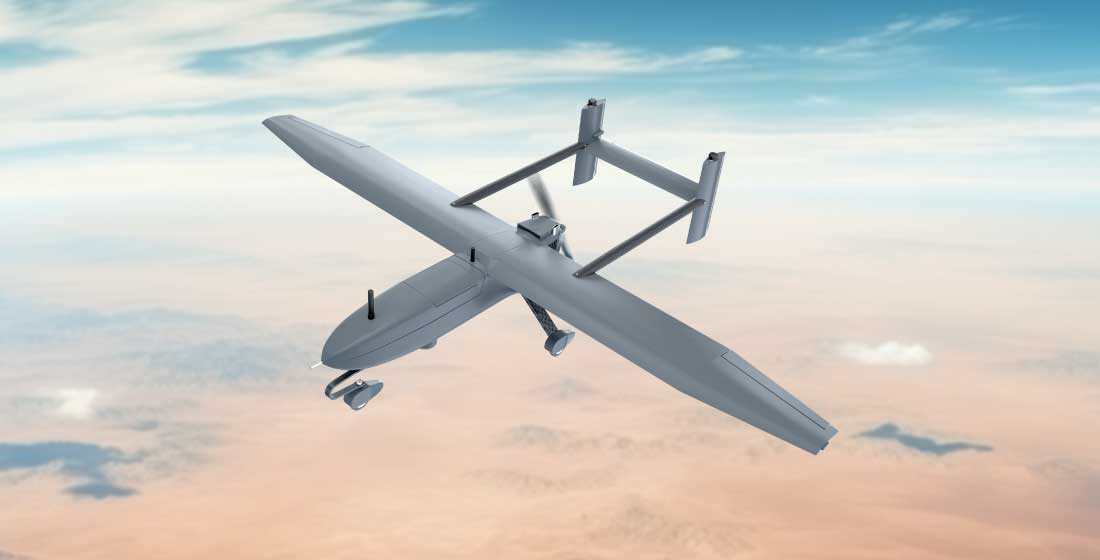

H-Tail 1K
A stable, long-endurance UAV platform optimised for mapping, surveillance, and inspection. Built for precision data capture across diverse terrains.
ENDURANCE
Upto 4 Hours
MTOW
28 kg
MAX SPEED
110 - 130 kmph
LAUNCHING ALTITUDE
Upto Upto 3500 m
Key Features & Benefits
- H-tail configuration for enhanced flight stability & control
- High aspect ratio wing enabling long-endurance missions
- Dual propulsion options: electric or internal combustion engine
- Autonomous waypoint navigation with advanced autopilot
- Multiple takeoff options: runway or assisted catapult launch
- Flexible landing: wheeled or belly landing capability
- Redundant navigation systems with fail-safe recovery modes
- Modular, field-serviceable airframe with detachable wings
- Reinforced landing gear for rugged terrain operations
- Optimised for efficient flight across varied mission profiles
- Tactical Surveillance & Reconnaissance (ISR)
- Border & Coastal Security Operations
- Persistent Area Monitoring & Threat Detection
- Tactical Reconnaissance & Target Tracking
- Forward Operating Surveillance Support
- Communication Relay in Field Deployments
- Search & Rescue (SAR) Support Operations
- Critical Infrastructure Protection
- EO/IR camera systems
- RGB/multispectral mapping sensors
- LiDAR payload (optional)
- Environmental & monitoring sensors
- Modular payload bay with quick-swap capability
- Wingspan: 3.6 m
- Length: 2.4 m
- Wing Area: 133 dm²
- Empty Weight: ~16 kg
- Cruise Speed: 60 - 90 kmph
- Operational Range: 20 - 60 km LOS
- Stall Speed: 45 kmph
- Wind Resistance: Up to 35 kmph
